扩展实现 OAuth2 密码模式
Spring 官方文档
OAuth2ResourceOwnerPasswordAuthenticationToken.java
java
/*
* Copyright (c) 2023-2024 pigcloud Authors. All Rights Reserved.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.pigcloud.pigx.auth.support.password;
import lombok.Getter;
import org.springframework.lang.Nullable;
import org.springframework.security.core.Authentication;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.endpoint.OAuth2ParameterNames;
import org.springframework.security.oauth2.server.authorization.authentication.OAuth2AuthorizationGrantAuthenticationToken;
import org.springframework.util.Assert;
import java.util.Collections;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;
/**
* 密码授权模式身份验证令牌(包含用户名和密码等).
*
* @author He Yuqiang
* @since 3.0.0
*/
@Getter
public class OAuth2ResourceOwnerPasswordAuthenticationToken extends OAuth2AuthorizationGrantAuthenticationToken {
/**
* 授权模式.
*/
public static final AuthorizationGrantType PASSWORD = new AuthorizationGrantType("password");
/**
* 令牌申请访问范围.
*/
private final Set<String> scopes;
/**
* 密码模式身份验证令牌.
* @param clientPrincipal 客户端信息
* @param scopes 令牌申请访问范围
* @param additionalParameters 自定义额外参数(用户名和密码)
*/
public OAuth2ResourceOwnerPasswordAuthenticationToken(Authentication clientPrincipal, @Nullable Set<String> scopes,
Map<String, Object> additionalParameters) {
super(PASSWORD, clientPrincipal, additionalParameters);
Assert.notNull(clientPrincipal, "clientPrincipal cannot be null");
this.scopes = Collections.unmodifiableSet(scopes != null ? new HashSet<>(scopes) : Collections.emptySet());
}
/**
* 用户凭证(密码).
*/
@Override
public Object getCredentials() {
return this.getAdditionalParameters().get(OAuth2ParameterNames.PASSWORD);
}
}OAuth2ResourceOwnerPasswordAuthenticationConverter.java
java
/*
* Copyright (c) 2023-2024 pigcloud Authors. All Rights Reserved.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.pigcloud.pigx.auth.support.password;
import com.pigcloud.pigx.common.security.utils.OAuth2EndpointUtils;
import jakarta.servlet.http.HttpServletRequest;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.context.SecurityContextHolder;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.OAuth2ErrorCodes;
import org.springframework.security.oauth2.core.endpoint.OAuth2ParameterNames;
import org.springframework.security.web.authentication.AuthenticationConverter;
import org.springframework.util.MultiValueMap;
import org.springframework.util.StringUtils;
import java.util.Arrays;
import java.util.HashMap;
import java.util.HashSet;
import java.util.Map;
import java.util.Set;
/**
* 密码模式参数解析器.
* <p>
* 解析请求参数中的用户名和密码，并构建相应的身份验证(Authentication)对象
*
* @author He Yuqiang
* @see org.springframework.security.oauth2.server.authorization.web.authentication.OAuth2AuthorizationCodeAuthenticationConverter
* @see org.springframework.security.oauth2.server.authorization.web.authentication.OAuth2AuthorizationCodeRequestAuthenticationConverter
*/
public class OAuth2ResourceOwnerPasswordAuthenticationConverter implements AuthenticationConverter {
@Override
public Authentication convert(HttpServletRequest request) {
// 参数提取验证
MultiValueMap<String, String> parameters = OAuth2EndpointUtils.getFormParameters(request);
// 授权类型 (必需)
String grantType = parameters.getFirst(OAuth2ParameterNames.GRANT_TYPE);
if (!AuthorizationGrantType.PASSWORD.getValue().equals(grantType)) {
return null;
}
// 客户端信息
Authentication clientPrincipal = SecurityContextHolder.getContext().getAuthentication();
// 令牌申请访问范围验证 (可选)
Set<String> scopes = null;
String scope = parameters.getFirst(OAuth2ParameterNames.SCOPE);
if (StringUtils.hasText(scope) && parameters.get(OAuth2ParameterNames.SCOPE).size() != 1) {
OAuth2EndpointUtils.throwError(OAuth2ErrorCodes.INVALID_REQUEST, OAuth2ParameterNames.SCOPE,
OAuth2EndpointUtils.ACCESS_TOKEN_REQUEST_ERROR_URI);
}
if (StringUtils.hasText(scope)) {
scopes = new HashSet<>(Arrays.asList(StringUtils.delimitedListToStringArray(scope, " ")));
}
// 用户名验证(必需)
String username = parameters.getFirst(OAuth2ParameterNames.USERNAME);
if (!StringUtils.hasText(username) || parameters.get(OAuth2ParameterNames.USERNAME).size() != 1) {
OAuth2EndpointUtils.throwError(OAuth2ErrorCodes.INVALID_REQUEST, OAuth2ParameterNames.USERNAME,
OAuth2EndpointUtils.ACCESS_TOKEN_REQUEST_ERROR_URI);
}
// 密码验证(必需)
String password = parameters.getFirst(OAuth2ParameterNames.PASSWORD);
if (!StringUtils.hasText(password) || parameters.get(OAuth2ParameterNames.PASSWORD).size() != 1) {
OAuth2EndpointUtils.throwError(OAuth2ErrorCodes.INVALID_REQUEST, OAuth2ParameterNames.PASSWORD,
OAuth2EndpointUtils.ACCESS_TOKEN_REQUEST_ERROR_URI);
}
// 附加参数(保存用户名/密码传递给 PasswordAuthenticationProvider 用于身份认证)
Map<String, Object> additionalParameters = new HashMap<>();
parameters.forEach((key, value) -> {
if (!key.equals(OAuth2ParameterNames.GRANT_TYPE) && !key.equals(OAuth2ParameterNames.CLIENT_ID)
&& !key.equals(OAuth2ParameterNames.SCOPE)) {
additionalParameters.put(key, value.get(0));
}
});
return new OAuth2ResourceOwnerPasswordAuthenticationToken(clientPrincipal, scopes, additionalParameters);
}
}OAuth2ResourceOwnerPasswordAuthenticationProvider.java
java
/*
* Copyright (c) 2023-2024 pigcloud Authors. All Rights Reserved.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.pigcloud.pigx.auth.support.password;
import com.pigcloud.pigx.auth.utils.OAuth2AuthenticationProviderUtils;
import com.pigcloud.pigx.common.security.utils.OAuth2EndpointUtils;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.authentication.AuthenticationProvider;
import org.springframework.security.authentication.UsernamePasswordAuthenticationToken;
import org.springframework.security.core.Authentication;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClaimAccessor;
import org.springframework.security.oauth2.core.OAuth2AccessToken;
import org.springframework.security.oauth2.core.OAuth2AuthenticationException;
import org.springframework.security.oauth2.core.OAuth2Error;
import org.springframework.security.oauth2.core.OAuth2ErrorCodes;
import org.springframework.security.oauth2.core.OAuth2RefreshToken;
import org.springframework.security.oauth2.core.OAuth2Token;
import org.springframework.security.oauth2.core.endpoint.OAuth2ParameterNames;
import org.springframework.security.oauth2.server.authorization.OAuth2Authorization;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.OAuth2TokenType;
import org.springframework.security.oauth2.server.authorization.authentication.OAuth2AccessTokenAuthenticationToken;
import org.springframework.security.oauth2.server.authorization.authentication.OAuth2ClientAuthenticationToken;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.context.AuthorizationServerContextHolder;
import org.springframework.security.oauth2.server.authorization.token.DefaultOAuth2TokenContext;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenContext;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenGenerator;
import org.springframework.util.Assert;
import java.security.Principal;
import java.util.Map;
import java.util.Set;
/**
* 密码模式身份验证提供者.
* <p>
* 处理基于用户名和密码的身份验证
*
* @author He yuqiang
* @see org.springframework.security.oauth2.server.authorization.authentication.OAuth2AuthorizationCodeAuthenticationProvider
* @see org.springframework.security.oauth2.server.authorization.authentication.OAuth2AuthorizationCodeRequestAuthenticationValidator
*/
public class OAuth2ResourceOwnerPasswordAuthenticationProvider implements AuthenticationProvider {
private static final String ERROR_URI = "https://datatracker.ietf.org/doc/html/rfc6749#section-5.2";
private final AuthenticationManager authenticationManager;
private final OAuth2AuthorizationService authorizationService;
private final OAuth2TokenGenerator<? extends OAuth2Token> tokenGenerator;
/**
* Constructs an {@code OAuth2ResourceOwnerPasswordAuthenticationProviderNew} using
* the provided parameters.
* @param authenticationManager the authentication manager
* @param authorizationService the authorization service
* @param tokenGenerator the token generator
*/
public OAuth2ResourceOwnerPasswordAuthenticationProvider(AuthenticationManager authenticationManager,
OAuth2AuthorizationService authorizationService,
OAuth2TokenGenerator<? extends OAuth2Token> tokenGenerator) {
Assert.notNull(authorizationService, "authorizationService cannot be null");
Assert.notNull(tokenGenerator, "tokenGenerator cannot be null");
this.authenticationManager = authenticationManager;
this.authorizationService = authorizationService;
this.tokenGenerator = tokenGenerator;
}
/**
* Performs authentication with the same contract as
* {@link AuthenticationManager#authenticate(Authentication)} .
* @param authentication the authentication request object.
* @return a fully authenticated object including credentials. May return
* <code>null</code> if the <code>AuthenticationProvider</code> is unable to support
* authentication of the passed <code>Authentication</code> object. In such a case,
* the next <code>AuthenticationProvider</code> that supports the presented
* <code>Authentication</code> class will be tried.
* @throws AuthenticationException if authentication fails.
*/
@Override
public Authentication authenticate(Authentication authentication) throws AuthenticationException {
OAuth2ResourceOwnerPasswordAuthenticationToken resourceOwnerPasswordAuthentication = (OAuth2ResourceOwnerPasswordAuthenticationToken) authentication;
// 确保客户端已通过身份验证
OAuth2ClientAuthenticationToken clientPrincipal = OAuth2AuthenticationProviderUtils
.getAuthenticatedClientElseThrowInvalidClient(resourceOwnerPasswordAuthentication);
RegisteredClient registeredClient = clientPrincipal.getRegisteredClient();
// 确保客户端配置为使用此授权授予类型(grant_type=password)
assert registeredClient != null;
if (!registeredClient.getAuthorizationGrantTypes()
.contains(resourceOwnerPasswordAuthentication.getGrantType())) {
throw new OAuth2AuthenticationException(OAuth2ErrorCodes.UNAUTHORIZED_CLIENT);
}
// 生成用户名密码身份验证令牌
Map<String, Object> additionalParameters = resourceOwnerPasswordAuthentication.getAdditionalParameters();
String username = (String) additionalParameters.get(OAuth2ParameterNames.USERNAME);
String password = (String) additionalParameters.get(OAuth2ParameterNames.PASSWORD);
UsernamePasswordAuthenticationToken usernamePasswordAuthenticationToken = new UsernamePasswordAuthenticationToken(
username, password);
// 用户名密码身份验证，成功后返回带有权限的认证信息
Authentication usernamePasswordAuthentication;
try {
usernamePasswordAuthentication = this.authenticationManager
.authenticate(usernamePasswordAuthenticationToken);
}
catch (Exception e) {
// 需要将其他类型的异常转换为 OAuth2AuthenticationException 才能被自定义异常捕获处理，逻辑源码
// OAuth2TokenEndpointFilter#doFilterInternal
throw new OAuth2AuthenticationException(e.getCause() != null ? e.getCause().getMessage() : e.getMessage());
}
// 验证申请访问范围(Scope)
Set<String> requestedScopes = resourceOwnerPasswordAuthentication.getScopes();
Set<String> allowedScopes = registeredClient.getScopes();
if (!requestedScopes.isEmpty() && !allowedScopes.containsAll(requestedScopes)) {
OAuth2EndpointUtils.throwError(OAuth2ErrorCodes.INVALID_SCOPE, OAuth2ParameterNames.USERNAME,
OAuth2EndpointUtils.ACCESS_TOKEN_REQUEST_ERROR_URI);
}
// 访问令牌(Access Token) 构造器
DefaultOAuth2TokenContext.Builder tokenContextBuilder = DefaultOAuth2TokenContext.builder()
.registeredClient(registeredClient)
// 身份验证成功的认证信息(用户名、权限等信息)
.principal(usernamePasswordAuthentication)
.authorizationServerContext(AuthorizationServerContextHolder.getContext())
.authorizedScopes(resourceOwnerPasswordAuthentication.getScopes())
// 授权方式
.authorizationGrantType(resourceOwnerPasswordAuthentication.getGrantType())
// 授权具体对象
.authorizationGrant(resourceOwnerPasswordAuthentication);
// 生成访问令牌(Access Token)
// ----- Access token -----
OAuth2TokenContext tokenContext = tokenContextBuilder.tokenType(OAuth2TokenType.ACCESS_TOKEN).build();
OAuth2Token generatedAccessToken = this.tokenGenerator.generate(tokenContext);
if (generatedAccessToken == null) {
OAuth2Error error = new OAuth2Error(OAuth2ErrorCodes.SERVER_ERROR,
"The token generator failed to generate the access token.", ERROR_URI);
throw new OAuth2AuthenticationException(error);
}
// Initialize the OAuth2Authorization
OAuth2Authorization.Builder authorizationBuilder = OAuth2Authorization.withRegisteredClient(registeredClient)
.principalName(usernamePasswordAuthentication.getName())
.authorizationGrantType(resourceOwnerPasswordAuthentication.getGrantType())
.authorizedScopes(requestedScopes)
.attribute(Principal.class.getName(), usernamePasswordAuthentication);
OAuth2AccessToken accessToken = new OAuth2AccessToken(OAuth2AccessToken.TokenType.BEARER,
generatedAccessToken.getTokenValue(), generatedAccessToken.getIssuedAt(),
generatedAccessToken.getExpiresAt(), tokenContext.getAuthorizedScopes());
if (generatedAccessToken instanceof ClaimAccessor) {
authorizationBuilder.token(accessToken,
(metadata) -> metadata.put(OAuth2Authorization.Token.CLAIMS_METADATA_NAME,
((ClaimAccessor) generatedAccessToken).getClaims()));
}
else {
authorizationBuilder.accessToken(accessToken);
}
// 生成刷新令牌(Refresh Token)
// ----- Refresh token -----
OAuth2RefreshToken refreshToken = null;
if (registeredClient.getAuthorizationGrantTypes().contains(AuthorizationGrantType.REFRESH_TOKEN)) {
tokenContext = tokenContextBuilder.tokenType(OAuth2TokenType.REFRESH_TOKEN).build();
OAuth2Token generatedRefreshToken = this.tokenGenerator.generate(tokenContext);
if (generatedRefreshToken != null) {
if (!(generatedRefreshToken instanceof OAuth2RefreshToken)) {
OAuth2Error error = new OAuth2Error(OAuth2ErrorCodes.SERVER_ERROR,
"The token generator failed to generate a valid refresh token.", ERROR_URI);
throw new OAuth2AuthenticationException(error);
}
refreshToken = (OAuth2RefreshToken) generatedRefreshToken;
authorizationBuilder.refreshToken(refreshToken);
}
}
OAuth2Authorization authorization = authorizationBuilder.build();
// 持久化令牌发放记录到数据库
// Save the OAuth2Authorization
this.authorizationService.save(authorization);
return new OAuth2AccessTokenAuthenticationToken(registeredClient, clientPrincipal, accessToken, refreshToken);
}
/**
* 判断传入的 authentication 类型是否与当前认证提供者(AuthenticationProvider)相匹配--模板方法.
* <p>
* ProviderManager#authenticate 遍历 providers 找到支持对应认证请求的 provider-迭代器模式
* @param authentication 认证信息
* @return 是否支持
*/
@Override
public boolean supports(Class<?> authentication) {
return OAuth2ResourceOwnerPasswordAuthenticationToken.class.isAssignableFrom(authentication);
}
}AuthorizationServerConfig.java
授权服务器注册自定授权模式的 Converter 和 Converter
java
/*
* Copyright (c) 2023-2024 pigcloud Authors. All Rights Reserved.
*
* Licensed under the Apache License, Version 2.0 (the "License");
* you may not use this file except in compliance with the License.
* You may obtain a copy of the License at
*
* https://www.apache.org/licenses/LICENSE-2.0
*
* Unless required by applicable law or agreed to in writing, software
* distributed under the License is distributed on an "AS IS" BASIS,
* WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
* See the License for the specific language governing permissions and
* limitations under the License.
*/
package com.pigcloud.pigx.auth.config;
import com.nimbusds.jose.jwk.JWKSet;
import com.nimbusds.jose.jwk.RSAKey;
import com.nimbusds.jose.jwk.source.ImmutableJWKSet;
import com.nimbusds.jose.jwk.source.JWKSource;
import com.nimbusds.jose.proc.SecurityContext;
import com.pigcloud.pigx.auth.authentication.DeviceClientAuthenticationConverter;
import com.pigcloud.pigx.auth.authentication.DeviceClientAuthenticationProvider;
import com.pigcloud.pigx.auth.support.password.OAuth2ResourceOwnerPasswordAuthenticationConverter;
import com.pigcloud.pigx.auth.support.password.OAuth2ResourceOwnerPasswordAuthenticationProvider;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.core.Ordered;
import org.springframework.core.annotation.Order;
import org.springframework.http.MediaType;
import org.springframework.jdbc.core.JdbcTemplate;
import org.springframework.security.authentication.AuthenticationManager;
import org.springframework.security.config.Customizer;
import org.springframework.security.config.annotation.authentication.configuration.AuthenticationConfiguration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.EnableWebSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityCustomizer;
import org.springframework.security.crypto.factory.PasswordEncoderFactories;
import org.springframework.security.crypto.password.PasswordEncoder;
import org.springframework.security.oauth2.core.AuthorizationGrantType;
import org.springframework.security.oauth2.core.ClientAuthenticationMethod;
import org.springframework.security.oauth2.core.OAuth2Token;
import org.springframework.security.oauth2.core.oidc.OidcScopes;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationConsentService;
import org.springframework.security.oauth2.server.authorization.JdbcOAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.OAuth2AuthorizationService;
import org.springframework.security.oauth2.server.authorization.client.JdbcRegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClient;
import org.springframework.security.oauth2.server.authorization.client.RegisteredClientRepository;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configuration.OAuth2AuthorizationServerConfiguration;
import org.springframework.security.oauth2.server.authorization.config.annotation.web.configurers.OAuth2AuthorizationServerConfigurer;
import org.springframework.security.oauth2.server.authorization.settings.AuthorizationServerSettings;
import org.springframework.security.oauth2.server.authorization.settings.ClientSettings;
import org.springframework.security.oauth2.server.authorization.settings.OAuth2TokenFormat;
import org.springframework.security.oauth2.server.authorization.settings.TokenSettings;
import org.springframework.security.oauth2.server.authorization.token.DelegatingOAuth2TokenGenerator;
import org.springframework.security.oauth2.server.authorization.token.OAuth2AccessTokenGenerator;
import org.springframework.security.oauth2.server.authorization.token.OAuth2RefreshTokenGenerator;
import org.springframework.security.oauth2.server.authorization.token.OAuth2TokenGenerator;
import org.springframework.security.web.SecurityFilterChain;
import org.springframework.security.web.authentication.LoginUrlAuthenticationEntryPoint;
import org.springframework.security.web.util.matcher.MediaTypeRequestMatcher;
import java.security.KeyPair;
import java.security.KeyPairGenerator;
import java.security.interfaces.RSAPrivateKey;
import java.security.interfaces.RSAPublicKey;
import java.time.Duration;
import java.util.UUID;
/**
* 授权服务器配置.
*
* @author He Yuqiang
*/
@EnableWebSecurity(debug = true)
@Configuration(proxyBeanMethods = false)
public class AuthorizationServerConfig {
/**
* 自定义同意授权页面.
*/
private static final String CUSTOM_CONSENT_PAGE_URI = "/oauth2/consent";
/**
* 授权服务器端点配置.
* @param http spring security核心配置类
* @param registeredClientRepository 存储和检索授权服务器上注册的客户端
* @param authorizationServerSettings 授权服务器的配置设置
* @param authenticationManager 授权服务器的配置设置
* @param authorizationService 授权服务器的配置设置
* @param tokenGenerator 授权服务器的配置设置
* @return 过滤器链
* @throws Exception 抛出
*/
// @formatter:off
@Bean
@Order(Ordered.HIGHEST_PRECEDENCE)
public SecurityFilterChain authorizationServerSecurityFilterChain(HttpSecurity http,
RegisteredClientRepository registeredClientRepository,
AuthorizationServerSettings authorizationServerSettings, AuthenticationManager authenticationManager,
OAuth2AuthorizationService authorizationService, OAuth2TokenGenerator<? extends OAuth2Token> tokenGenerator)
throws Exception {
// 应用OAuth2授权服务器的默认安全配置。
OAuth2AuthorizationServerConfiguration.applyDefaultSecurity(http);
DeviceClientAuthenticationConverter deviceClientAuthenticationConverter = new DeviceClientAuthenticationConverter(
authorizationServerSettings.getDeviceAuthorizationEndpoint());
DeviceClientAuthenticationProvider deviceClientAuthenticationProvider = new DeviceClientAuthenticationProvider(
registeredClientRepository);
// 配置OAuth2授权服务器的安全过滤链，启用OpenID Connect 1.0。
// OpenID Connect是OAuth 2.0的一个扩展，用于添加用户身份验证。
// @formatter:off
http.getConfigurer(OAuth2AuthorizationServerConfigurer.class)
// 设置设备码用户验证url(自定义用户验证页)
.deviceAuthorizationEndpoint(
deviceAuthorizationEndpoint -> deviceAuthorizationEndpoint.verificationUri("/activate")
)
// 设置验证设备码用户确认页面
.deviceVerificationEndpoint(
deviceVerificationEndpoint -> deviceVerificationEndpoint.consentPage(CUSTOM_CONSENT_PAGE_URI)
)
.clientAuthentication(clientAuthentication ->
// 客户端认证添加设备码的converter和provider
clientAuthentication
.authenticationConverter(deviceClientAuthenticationConverter)
.authenticationProvider(deviceClientAuthenticationProvider))
// 设置自定义用户确认授权页
.authorizationEndpoint(authorizationEndpoint -> authorizationEndpoint.consentPage(CUSTOM_CONSENT_PAGE_URI))
.tokenEndpoint(tokenEndpoint -> tokenEndpoint
// 自定义授权模式转换器(Converter)
.accessTokenRequestConverters(accessTokenRequestConverters -> accessTokenRequestConverters
.add(new OAuth2ResourceOwnerPasswordAuthenticationConverter())
)
// 自定义授权模式提供者(Provider)
.authenticationProviders(authenticationProviders -> authenticationProviders
.add(new OAuth2ResourceOwnerPasswordAuthenticationProvider(authenticationManager,
authorizationService, tokenGenerator))
)
)
.oidc(Customizer.withDefaults());
// @formatter:on
// @formatter:off
http
// 配置异常处理，当从授权端点未认证时，重定向到登录页面。
// 这里定义了一个登录URL认证入口点，并指定它只适用于TEXT_HTML媒体类型。
.exceptionHandling((exceptions) -> exceptions
.defaultAuthenticationEntryPointFor(
new LoginUrlAuthenticationEntryPoint("/login"),
new MediaTypeRequestMatcher(MediaType.TEXT_HTML))
)
// 配置OAuth2资源服务器，接受用户信息和/或客户端注册的访问令牌。
// 这里使用JWT（JSON Web Tokens）作为访问令牌的格式。
.oauth2ResourceServer((resourceServer) ->
resourceServer.opaqueToken(Customizer.withDefaults())
);
// @formatter:on
return http.build();
}
/**
* 默认安全过滤器配置.
* @param http spring security核心配置类
* @return 过滤器链
* @throws Exception 抛出
*/
@Bean
@Order(2)
public SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
// @formatter:off
http
// 配置默认的HTTP请求授权规则，要求所有请求都必须经过身份验证。
.authorizeHttpRequests((authorize) -> authorize
// 放行静态资源
.requestMatchers("favicon.svg", "/assets/**", "/webjars/**", "/error").permitAll()
.anyRequest().authenticated()
)
// 配置表单登录，使用默认设置。
// 这处理从授权服务器过滤链重定向到登录页面的情况。
// .formLogin(Customizer.withDefaults())
.formLogin(formLogin -> formLogin
.loginPage("/login")
.permitAll()
)
.logout(logout -> logout
.logoutUrl("/logout")
.permitAll()
);
// @formatter:on
return http.build();
}
/**
* 定义一个 WebSecurityCustomizer Bean，用于定制 WebSecurity 的行为.
* @return 返回 WebSecurityCustomizer 实例
*/
@Bean
public WebSecurityCustomizer webSecurityCustomizer() {
return (web) -> {
// 关闭调试模式，这样在运行时不会输出详细的安全相关信息
web.debug(false)
// 忽略指定的请求路径，不进行安全检查
.ignoring()
.requestMatchers("/webjars/**", "/images/**", "/css/**", "/assets/**", "/favicon.ico");
};
}
@Bean
public PasswordEncoder passwordEncoder() {
return PasswordEncoderFactories.createDelegatingPasswordEncoder();
}
/**
* 配置客户端Repository.
* @param jdbcTemplate db 数据源信息
* @return 基于数据库的repository
*/
@Bean
public RegisteredClientRepository registeredClientRepository(JdbcTemplate jdbcTemplate) {
// 创建一个JdbcRegisteredClientRepository实例，用于将已注册的客户端保存到数据库中
JdbcRegisteredClientRepository registeredClientRepository = new JdbcRegisteredClientRepository(jdbcTemplate);
initRegisteredClient(registeredClientRepository);
return registeredClientRepository;
}
/**
* 初始化OAuth2客户端信息.
* @param registeredClientRepository 客户端持久化工具
*/
private static void initRegisteredClient(JdbcRegisteredClientRepository registeredClientRepository) {
// @formatter:off
// 创建一个RegisteredClient对象，并为其分配一个唯一的ID，该ID是基于UUID生成的。
RegisteredClient registeredClient = RegisteredClient.withId(UUID.randomUUID().toString())
// 设置该客户端的ID为"messaging-client"。
.clientId("messaging-client")
// 设置客户端的秘密为"{noop}secret"，这里的"{noop}"表示不对秘密进行加密处理。
.clientSecret("{noop}secret")
// 设置客户端认证方法为基于客户端秘密的基本认证。
.clientAuthenticationMethod(ClientAuthenticationMethod.CLIENT_SECRET_BASIC)
// 为该客户端配置授权类型，首先配置为授权码模式。
.authorizationGrantType(AuthorizationGrantType.AUTHORIZATION_CODE)
// 添加刷新令牌授权类型，允许客户端使用刷新令牌来获取新的访问令牌。
.authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
// 添加客户端凭证授权类型，允许客户端使用其凭证直接获取令牌。
.authorizationGrantType(AuthorizationGrantType.CLIENT_CREDENTIALS)
// 扩展密码模式
.authorizationGrantType(AuthorizationGrantType.PASSWORD)
// 设置授权码流程的重定向URI，当授权流程完成后，用户将被重定向到这个URI。
.redirectUri("http://127.0.0.1:8080/login/oauth2/code/messaging-client-oidc")
// 设置另一个重定向URI，可能用于其他授权流程。
.redirectUri("http://127.0.0.1:8080/authorized")
// 设置一个仅用于测试的重定向URI，用于接收授权码。
.redirectUri("https://pigx.pigcloud.cn")
// 设置用户注销后的重定向URI。
.postLogoutRedirectUri("http://127.0.0.1:8080/logged-out")
// 添加OpenID Connect的范围，允许客户端访问用户的身份信息。
.scope(OidcScopes.OPENID)
// 添加Profile范围，允许客户端访问用户的个人资料信息。
.scope(OidcScopes.PROFILE)
// 添加自定义范围"message.read"，允许客户端读取消息。
.scope("message.read")
// 添加自定义范围"message.write"，允许客户端写入消息。
.scope("message.write")
// 设置客户端设置，要求每次都需要用户授权同意。
.clientSettings(ClientSettings.builder().requireAuthorizationConsent(true).build())
// 配置令牌设置，设置访问令牌的有效时间为30分钟。
.tokenSettings(TokenSettings.builder()
// 访问令牌格式，支持OAuth2TokenFormat.SELF_CONTAINED（自包含的令牌使用受保护的、有时间限制的数据结构，例如JWT）；OAuth2TokenFormat.REFERENCE（不透明令牌）
// .accessTokenFormat(OAuth2TokenFormat.SELF_CONTAINED)
.accessTokenFormat(OAuth2TokenFormat.REFERENCE)
.accessTokenTimeToLive(Duration.ofMinutes(120))
.build())
// 构建并返回配置好的RegisteredClient对象。
.build();
// @formatter:on
// @formatter:off
// 创建另一个RegisteredClient对象，名为deviceClient，用于设备授权
RegisteredClient deviceClient = RegisteredClient.withId(UUID.randomUUID().toString())
.clientId("device-messaging-client")
// 公共客户端
.clientAuthenticationMethod(ClientAuthenticationMethod.NONE)
// 设备码授权
.authorizationGrantType(AuthorizationGrantType.DEVICE_CODE)
.authorizationGrantType(AuthorizationGrantType.REFRESH_TOKEN)
// 自定scope
.scope("message.read")
.scope("message.write")
.build();
// @formatter:on
// 初始化客户端
if (registeredClientRepository.findByClientId(registeredClient.getClientId()) == null) {
registeredClientRepository.save(registeredClient);
}
// 创建另一个RegisteredClient对象，名为deviceClient，用于设备授权
if (registeredClientRepository.findByClientId(deviceClient.getClientId()) == null) {
registeredClientRepository.save(deviceClient);
}
}
/**
* 创建一个OAuth2AuthorizationService的Bean实例，用于处理OAuth2授权相关的服务.
* @param jdbcTemplate 用于数据库操作的JdbcTemplate实例
* @param registeredClientRepository 注册客户端的仓库实例
* @return 返回配置好的OAuth2AuthorizationService实例
*/
@Bean
public OAuth2AuthorizationService authorizationService(JdbcTemplate jdbcTemplate,
RegisteredClientRepository registeredClientRepository) {
// 创建一个JdbcOAuth2AuthorizationService实例，用于处理与OAuth2授权相关的数据库操作
return new JdbcOAuth2AuthorizationService(jdbcTemplate, registeredClientRepository);
}
/**
* 存储新授权同意和查询现有授权同意的核心组件。它主要由实现 OAuth2 授权请求流（例如 authorization_code 授权）的组件使用.
* @param jdbcTemplate db数据源信息
* @param registeredClientRepository 客户端repository
* @return JdbcOAuth2AuthorizationConsentService
*/
@Bean
public JdbcOAuth2AuthorizationConsentService authorizationConsentService(JdbcTemplate jdbcTemplate,
RegisteredClientRepository registeredClientRepository) {
// Will be used by the ConsentController
return new JdbcOAuth2AuthorizationConsentService(jdbcTemplate, registeredClientRepository);
}
/**
* 配置jwk源，使用非对称加密，公开用于检索匹配指定选择器的JWK的方法.
* @return JWKSource
*/
@Bean
public JWKSource<SecurityContext> jwkSource() {
// 生成RSA密钥对。
KeyPair keyPair = generateRsaKey();
// 从密钥对中获取公钥。
RSAPublicKey publicKey = (RSAPublicKey) keyPair.getPublic();
// 从密钥对中获取私钥。
RSAPrivateKey privateKey = (RSAPrivateKey) keyPair.getPrivate();
// 使用公钥和私钥创建一个RSAKey对象，并为其分配一个随机的UUID作为keyID。
RSAKey rsaKey = new RSAKey.Builder(publicKey).privateKey(privateKey)
.keyID(UUID.randomUUID().toString())
.build();
// 创建一个包含这个RSAKey的JWKSet对象。
JWKSet jwkSet = new JWKSet(rsaKey);
// 返回一个不可变的JWKSet对象，这通常是为了保证安全而设计的。
return new ImmutableJWKSet<>(jwkSet);
}
/**
* 私有方法，用于生成RSA密钥对.
* @return KeyPair
*/
private static KeyPair generateRsaKey() {
KeyPair keyPair;
try {
// 实例化一个RSA密钥对生成器。
KeyPairGenerator keyPairGenerator = KeyPairGenerator.getInstance("RSA");
// 初始化密钥对生成器，指定密钥长度为2048位。
keyPairGenerator.initialize(2048);
// 生成RSA密钥对。
keyPair = keyPairGenerator.generateKeyPair();
}
catch (Exception ex) {
// 如果发生异常，则抛出IllegalStateException。
throw new IllegalStateException(ex);
}
// 返回生成的密钥对。
return keyPair;
}
/**
* 用于解码签名访问令牌的 JwtDecoder 实例.
* @param jwkSource jwk源
* @return JwtDecoder
*/
@Bean
public JwtDecoder jwtDecoder(JWKSource<SecurityContext> jwkSource) {
// 使用OAuth2AuthorizationServerConfiguration类中的静态方法jwtDecoder，
// 根据提供的JWKSource对象创建JwtDecoder。
// JwtDecoder是用于解码JWT的组件。
return OAuth2AuthorizationServerConfiguration.jwtDecoder(jwkSource);
}
/**
* 配置OAuth 2.0授权服务器.
* @return AuthorizationServerSettings
*/
@Bean
public AuthorizationServerSettings authorizationServerSettings() {
// 创建一个AuthorizationServerSettings对象，并使用默认设置。
// 这个对象通常用于配置授权服务器的各种设置。
return AuthorizationServerSettings.builder().build();
}
/**
* 身份验证管理器.
* @param authenticationConfiguration 认证配置
* @return AuthenticationManager
* @throws Exception 抛出
*/
@Bean
public AuthenticationManager authenticationManager(AuthenticationConfiguration authenticationConfiguration)
throws Exception {
return authenticationConfiguration.getAuthenticationManager();
}
/**
* 定义一个生成OAuth2令牌的Bean.
* @return 返回一个OAuth2令牌生成器实例
*/
@Bean
public OAuth2TokenGenerator<?> tokenGenerator() {
// 创建一个OAuth2访问令牌生成器
OAuth2AccessTokenGenerator accessTokenGenerator = new OAuth2AccessTokenGenerator();
// 创建一个OAuth2刷新令牌生成器
OAuth2RefreshTokenGenerator refreshTokenGenerator = new OAuth2RefreshTokenGenerator();
// 创建一个委托OAuth2令牌生成器，它将使用访问令牌生成器和刷新令牌生成器来生成令牌
return new DelegatingOAuth2TokenGenerator(accessTokenGenerator, refreshTokenGenerator);
}
}模拟测试

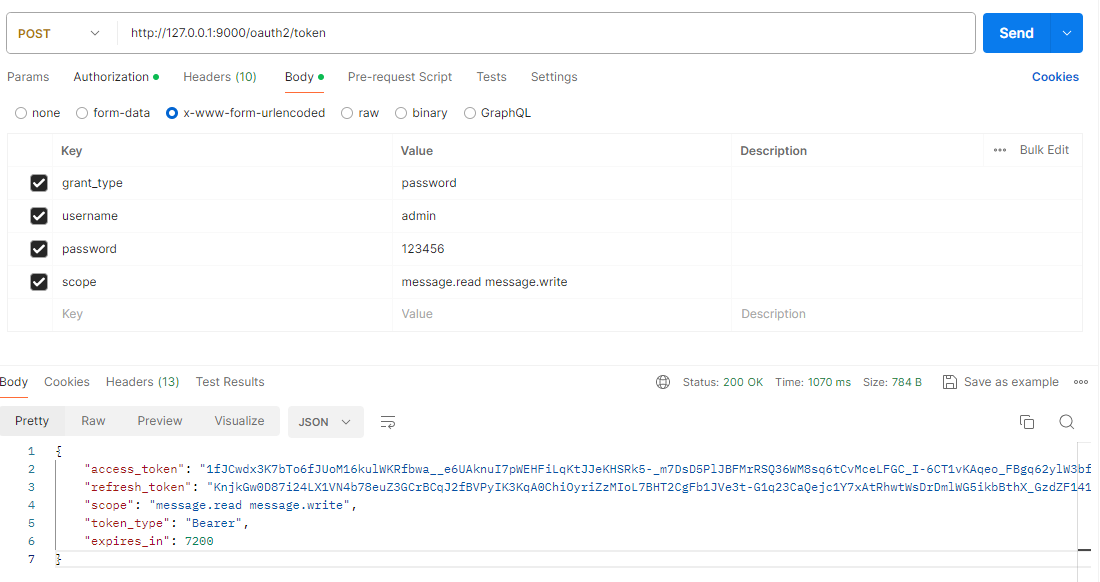

① 使用密码模式获取令牌
GET /
Headers 请求参数
Authorization: Basic bWVzc2FnaW5nLWNsaWVudDpzZWNyZXQ=cURL代码片段
curl --location 'http://127.0.0.1:9000/oauth2/token' \
--header 'Content-Type: application/x-www-form-urlencoded' \
--header 'Authorization: Basic bWVzc2FnaW5nLWNsaWVudDpzZWNyZXQ=' \
--data-urlencode 'grant_type=password' \
--data-urlencode 'username=admin' \
--data-urlencode 'password=123456' \
--data-urlencode 'scope=message.read message.write'成功获取了访问令牌和刷新令牌，密码模式扩展成功。
